Configuration with the PC Software

PC Software ››
Parent Previous Next

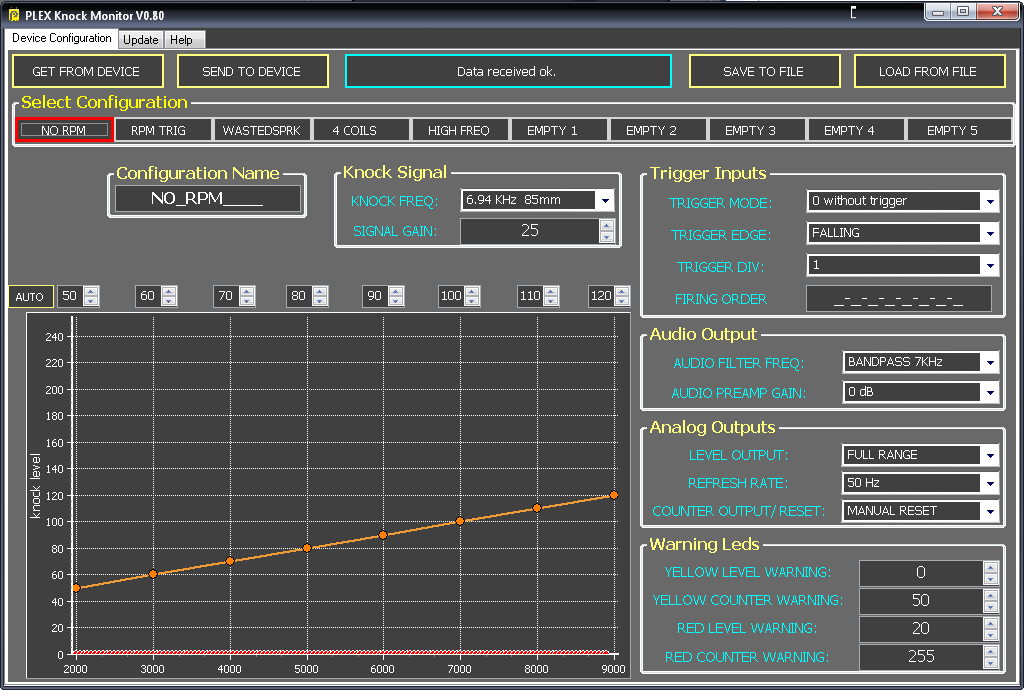

The Plex Knock Monitor is equipped with a USB port that can be used to view and edit the preset configurations.

Step 1

- Power up the Knock Monitor and navigate either to menu 8 or 8.2.

Step 2

- Connect the USB cable to the Knock Monitor and PC.

Step 3

- Click the "GET DATA FROM DEVICE" button to read the preset configuration data from the Knock Monitor

Step 4

- Adjust the presets to your liking.

Step 5

- Click the "SEND TO DEVICE" button to write the changed preset configuration data to the Knock Monitor.


- The preset configuration data can also be save to and retrieved from a file for backup or sharing purposes.
