The PLEX PBC PRO® is a revolutionary next generation electronic boost controller recognised for its unsurpassed accuracy, on-the-fly configuration, wide versatility, 7D simultaneous boost control and its motorsport specifications. Unlike other boost controllers, the PBC PRO comes with OBD CAN BUS functionality which make it capable of displaying various OBD parameters and using OBD PIDs for advanced engine protection. It is available in two CAN BUS versions that also include EGT input(s) and a basic version without CAN BUS and EGTs.
This product is sold-out.

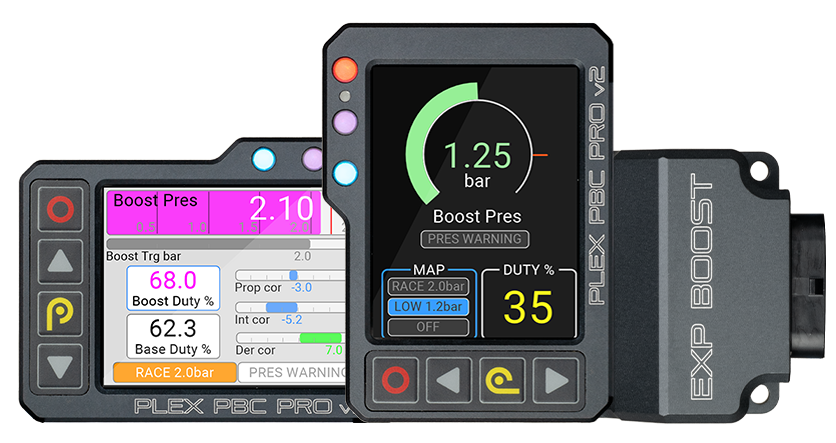

Our New PBC PRO II Boost Controller is Coming Soon!
Sign-up to be notified for the Pre-order here.
Key Features
PRELOADED PROTOCOLS | CAN BUS VERSIONS
Product Video
Product Hardware Details
Pro-level Boost Control in 7 Dimensions

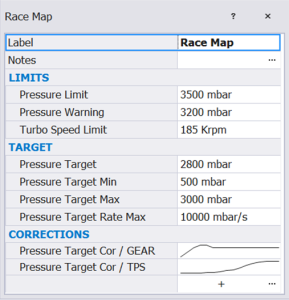

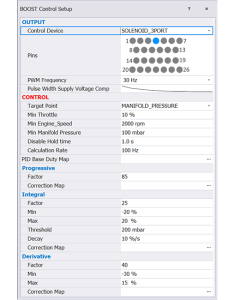

Multi-level, simultaneous boost control by following variables: Gear, RPM, Throttle, Air-Temp, Speed and Time. Choose between open or closed loop modes and easily adjust the solenoid or boost target duty cycles versus each dimension. Configure the boost control maps right on the device and save up to four different custom presets with your preferred settings.
Fully Configurable On-The-Fly
Five dedicated keys, and an easy to navigate ribbon menu, let you set-up or reconfigure the PBC PRO completely from the device, without the need for a PC
Powerful, Wide-Angle LED Light
A very strong and configurable wide-angle LED light can be used as shift light and also warn you on boost and EGT settings
Micro USB Port for FW Updating
To future proof the PBC PRO, we’ve added a micro USB port that allows firmware updates with enhanced or added functionality
Up to 6bar Boost Control
Unlimited boost management even for extreme power drag racing vehicles. The PBC PRO comes with our default 4bar map sensor but can accept sensors up to 6bars.
Auto Peak Boost Display
Peak hold function allows easy display of the peak boost figure with just a single click and can also be programmed to display the peak boost value automatically
Ethanol Content Display
Connect a flex fuel sensor and display the ethanol content percentage which is useful for mixed fuel vehicles
Smart Engine Protection
EGT Inputs
The CAN BUS versions come equipped with 1 or 2 EGT inputs to let you monitor exhaust gas temperatures easily and set both alarms and limits to prevent engine damage from overheating
Wideband A/F Ratio
Connect the PBC PRO to most available Wideband A/F Ratio controllers to display lambda values and use them for warnings and limits. If engine exceeds a set boost threshold & the lambda is leaner than the set limit, a warning will be displayed and the boost will shut-off.
Fuel Pressure
The PBC PRO calculates the differential fuel pressure and uses this value to apply warning and limit when the fuel delivery is not adequate. Requires the AEM 10bar Fuel Pressure Sensor.
4 User Adjustable Presets
Create up to 4 different presets and store them with your preferred names. Decide which will be the “default” one, and easily switch among the different presets with just a couple clicks and with an external switch.
Lock Options for Tuners
Better safe than sorry. The PBC PRO offers convenient password protection that lets you lock the boost limits, the tuning settings and/or the boost log statistics and this way protect your customer from frivolous adjustment of the settings that can lead to negligence.

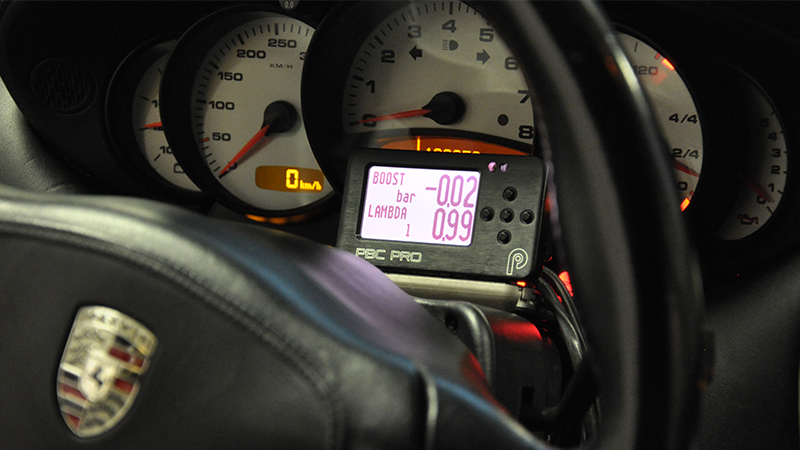

Porsche 996t Protocol
Chose the Porsche 996t protocol from the menu and without extra wiring, using the CAN bus connection to the ECU, view and utilise engine rpm vehicle speed, water temp, intake air temp and throttle position. Available only on CAN BUS versions.
VW Group Protocol
Choose the VW Group protocol from the menu to display and utilise extended ECU parameters such as knock retard per cyl., fuel pressure, oil temp, misfire count, rpm, lamdba, speed, water/air temp., throttle position & ignition timing. Available only on CAN BUS versions.
What Customers Say
Product Versions
- Basic: no OBD, no EGT(s)
- OBD / Single EGT Input
- OBD / Dual EGT Inputs
Technical Spec
- Operating Voltage: 6-18 V DC
- Operating Temperature: -10 to +60 C
- Dimensions: w 90mm, h 50mm, d 17mm
- Weight: 110g
What’s in the Box
- Boost Controller
- Solenoid Valve
- 4bar Map Sensor
- Tyco Spec44 Wiring Loom
- Mounting Screws
- 3M Velcro tape
