SDM-700 Dash Display & Logger

PLEX_SDM-700_ALL_SIDES

PLEX SDM-700®

7” Pro-level Dash Display & Central Logger
high precision | fully configurable | multi-functional

SDM-700® is our flagship 7” Pro-level Dash Display & Central Logger that is suitable for the most demanding of usage cases. Weighting less than 800g, it comes in a high quality , IP67 sealed, CNC aluminium enclosure and features an ultra-vivid, high-brightness anti-reflective TFT display. Combines best-in-class display functionality and UI with full spectrum datalogging and performance measurements, with built-in 50Hz GPS, 100Hz IMU and 1GB memory.

Availability: on back-order | Price (excl. VAT): €2.399
New production batch will come with improvements. Read More!

Key Features

7'' High-Brighness TFT Display

Uncompromised quality with 1000cd daylight view 800×480 display. ARC type broadband anti-reflective coating. Easily viewable in all light & weather conditions.

Built-in 50Hz GPS Module

Up to  50Hz internal GPS module with ultra-fast start-up time (1-3 sec) enables accurate predictive lap-timing with section break down and raw data logging.

Smart Alarms / Warnings

22 pre-loaded Smart Alarms require that you only input the trigger value. User defined alarms and alarm history (last 2000) also available.

IP67 Environment Protection

Fully sealed enclosure effectively protects device against dust and water

High Volume & Speed Datalogging

Log up to 500 data channels at 1000Hz

QuickGlance™ UI

Proprietary UI design ensures optimal viewability and reduced driver distraction by optimising smart colour coding and contrast for the driver’s peripheral vision.

Up to 512 Data Channels

Display and log up to 512 different data channels, status/error flags from external sensors, connected devices and internal calculated values

2 Fully Configurable CAN BUS Ports

Programmable CAN BUS ports for msg receive & transmit let you configure the display to communicate with any CAN Bus device

Up to 16 Math Channels

Create up to 16 user-defined math channels allow custom parameters to be calculated in real-time

High-speed USB Port

Ultra fast data log memory download and easy device configuration from the PC

Serial Connectivity

2x RS232 ports, 1x LIN Bus port

Automatic Page Changing

Hands-free display page changing based on user-defined conditions such as engine status and/or load to help you keep your attention focused.

Built-in 100Hz IMU Module

Accurate internal Inertia Measurement Unit provides acceleration and absolute orientation data which can be used for vehicle dynamics analysis

Up to 48 Display Pages

Add up to 48 different display pages and choose among different predefined page layouts or create your own

Fast 1GB Built-in Memory

Ultra-fast built-in memory allows extreme logging rates.

37pin Motorsport Connector

8 multi-purpose inputs (ana, dig, freq), 4x switch inputs, 2x K-type thermocouple inputs, 8x high-speed and precision ana inputs, 2 engine position VR/hall inputs, 4x  aux outputs (HS/LS), multiple fixed & adjustable sensor power supplies
After Market ECU Compatibility
PRODUCT HARDWARE DETAILS
PLEX_SDM-700-HW-Details
PLEX_SDM-700_ANGLE_VIEW_SD

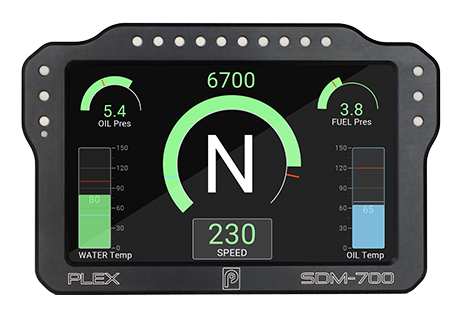

7” High-Brightness Anti-Reflective TFT Display

With luminance 1,000 cd/m2  the 800 x 480 display looks very vivid and is easily readable in all light conditions and from various viewing angles. The multi-layer broadband antireflective coating decreases surface reflections drastically, whilst increasing light transmission and eliminating “ghost” imaging.

Ultra-Fast Display Refresh Rate

50Hz display refresh rate ensures a smooth, real-time-feel visual experience and lets you view exactly what is happening, the moment it is happening, with no delay in between

Automatic Display Dimming Function

A very responsive light sensor at the front of the monitor enables adaptive display dimming to suit the light conditions and makes viewing better both in direct sunlight and low light conditions

16 Programmable LED Lights

16 fully programmable LED lights for advanced shift-lighting and other functions. Easily edit each LED’s colour, brightness and blink frequency and assign multiple functions (shift lights / warnings & status indications, etc). Lighting patterns coming soon as well.

1 Sec Boot Time!

No delays, almost instant fire-up. A powerful processor and effective firmware design enables a total boot time of just 1 second. You just switch on the engine the SDM-700® fires-up immediately.

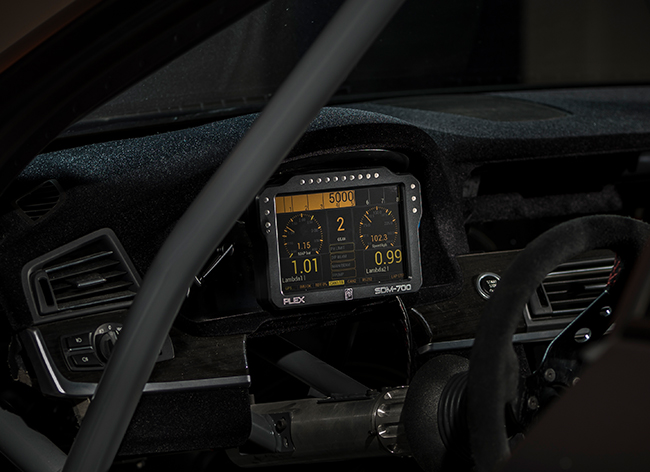

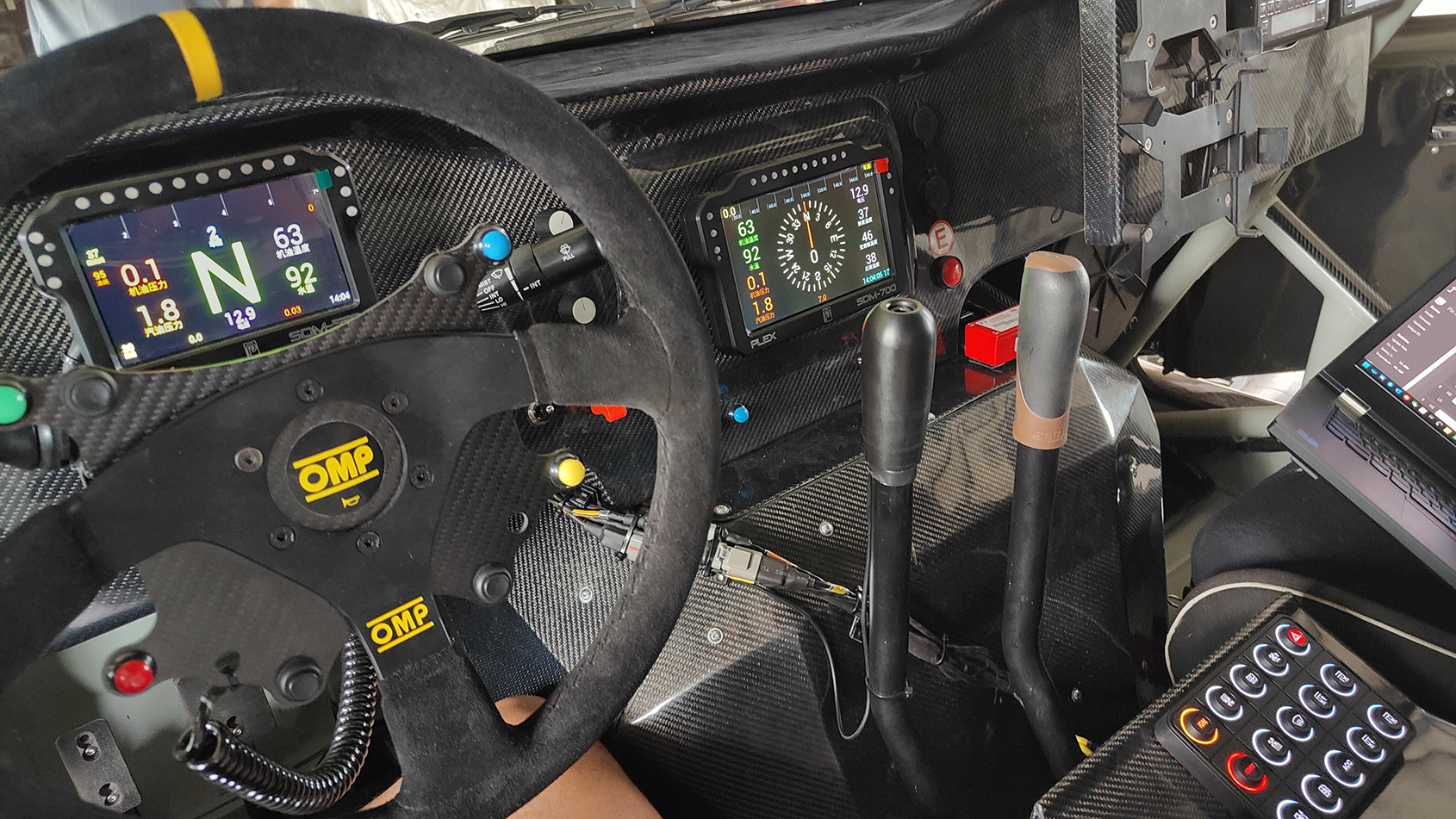

PLEX_SDM_700_PRD_PROJECT
SELECTABLE COLOUR THEMES
PLEX_SDM-700_Race2_PLEX_THEME

DEFAULT PLEX THEME

Our recommended theme for optimum viewing ergonomics based on recent studies

PLEX_SDM-700_Race2_COLOURBLIND_THEME

COLOUR BLIND THEME

Theme for colour blind drivers who cannot easily distinguish green and red

PLEX_SDM-700_Race2_OEM_THEME

OEM STYLE THEME

Amber colour theme for blending the display better with OEM dashboards

PLEX_SDM-700_Race2_WHITE_THEME

DAYLIGHT THEME

White background theme usually preferred for day or open air use

MULTIPLE DISPLAY PAGE LAYOUTS

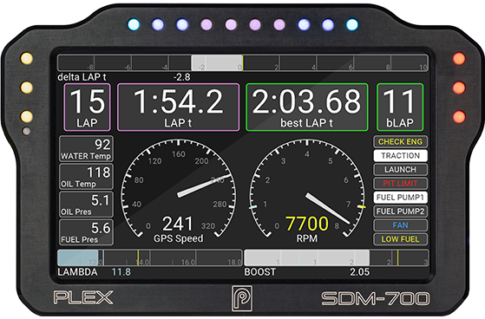

Multiple display layout pages to choose from (we keep expanding the options), plus Pop-up displays, diagnostic, and statistics pages. All designed to offer best possible viewing ergonomics. Users can select to install the same layout many times but with different channels and name them accordingly.

AUTO DISPLAY PAGE CHANGING

The Auto Display Page Changing function  allows you to keep your hands on the wheel and your focus on the track without having to manually switch among different page layouts. You only have to decide on the conditions and the parameters for 4 different display pages: “WARM-UP”, “RACE”, “ERROR” and “NORMAL” and also 4 custom “OVERRIDE” pages. Once the thresholds are reached the SDM-700® will automatically switch to the respective page.

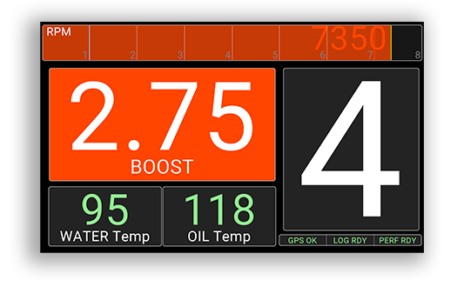

QuickGlance™ UI For Best Viewing Ergonomics

Smart Colour Coding
Configurable 3-level parameter colour-coding minimises distraction and communicates engine status easily with just a quick glance. How does it work? The user defines the low (BLUE), normal (GREEN) and high (RED) thresholds for each displayed channel and the SDM-700® colours it accordingly once the values hit that range. Your peripheral vision will then let you know almost instinctively when something is out-of-place and if it requires your extra attention.

Optimum Contrast, Saturation and Fonts
Instead of trying to impress with fancy realistic graphics, overly contrasted display items and ineffective fonts, we chose to implement the most effective combination of font type / size, colour palette and contrast levels that is derived from aviation dashboard design and colour theory studies. Priority is placed in having effective display items that require the minimum driver attention and achieve a “magnifying” effect making the SDM-700® come across as larger than just 7”.



PLEX_SDM_700_Race2B_plex_LOWLOW Values Depicted in "BLUE"
PLEX_SDM_700_Race2B_plex_OKAll Values within "NORMAL" Range
HIGH Values Depicted in "RED"
COMING SOON

Custom Page & Theme Design

With a firmware update meant to be release soon, you will have the chance to easily create your own display pages by choosing and arranging any of the display page objects according to your preferences. You will also be able to create your own colour theme and hence match the SDM-700 to your project’s colour palette.

On-Device Engine Log Display

Our most advanced Engine Log yet,  provides a detailed snapshot of how your engine has been used with the possibility of displaying up to 16 different min/max values, 16 accumulated conditions time, alarm accumulated times and last 400 alarms log. Soon, you will be able to view this also on the device apart from the PC.

On Device Config. & Review

Similar to our SDM-500® you will soon be able to edit the configurations of the SDM-700® easily with with external buttons. Basic datalog review will also be possible on the device, without the need for a PC. This is a great feature especially appreciated when time is tight and particularly in between runs.

PLEX PDA-WIN® SOFTWARE: POWERFUL. VERSATILE. EASY TO USE.

The PLEX Data Analysis WIN Software® (PLEX PDA-WIN) is one of the easiest, fastest and most versatile data analysis & visualisation solutions available that is meant to shape the way racers benefit from logged data by saving time & enabling smarter decision making. The intuitive UI and customisation options help one decipher complex engine, race, driver & tuning data by visualising it in easy to interpret & compare graphs, tables and other analysis components. Additionally, its .csv/proprietary file import function (Pro version) makes it suitable for any logger, ECU and display.

Customisable UI

User defined layout of tabs and panels with handy panel docking similar to latest Windows SW suite.

Easy File Comparison

Seamlessly switch between single and comparison view even for completely different file types such as a dyno run with a track lap.

Video File Sync

Sync and review your video data along with the log data to get additional information on driver performance and data context

Fast Keyboard Shortcuts

Keyboard shortcuts for the main menu and panel functions speed up the set-up time and real-time analysis considerably.

Live Data Updating

Zoom levels & cursors are linked among all analysis panels/graphs allowing automatic rescaling & cross referencing of data.

CSV Data Import

Take advantage of the PLEX Data Analysis Sw & use it to analyse data, from any logging system (ECUs, dedicated loggers, etc)

Multiple Data Graphs & Reports

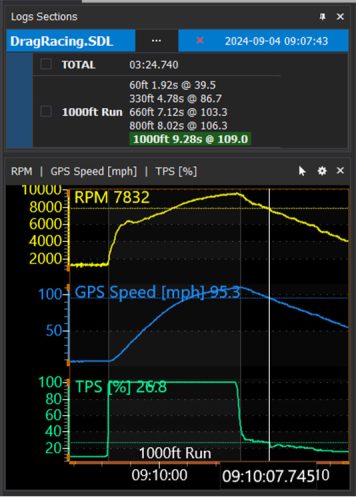

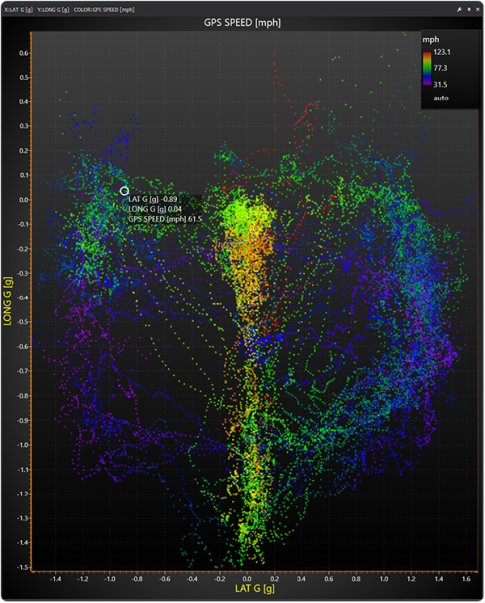

Line-graphs, navigation graphs, XY graphs, histograms, gauges, track-maps, tuning maps, laps/runs reports, data values at cursor and more.

Built-in Project Database

Create and keep track of events, tracks, drivers, vehicles and engines for easy referencing and historical data tracking.

Smart Tuning Maps

Optimise your fuel and ignition maps by analysing the log data in tuning maps with the same breakpoints as your ECU.
PLEX_VMU-900_SIDE_VIEW_I
Built-in 50Hz Vehicle Dynamics Module

An integrated 50Hz GPS /100Hz IMU module enables very accurate measurements for a variety of applications such as driver analysis, lap timing, vehicle trajectory analysis, track mapping, acceleration-decceleration. It functions also as a full-fledged, always-on Performance Meter. In fact, the SDM-700 includes a complete VMU-900 which you can also buy separately as independent module or add-on for other products.

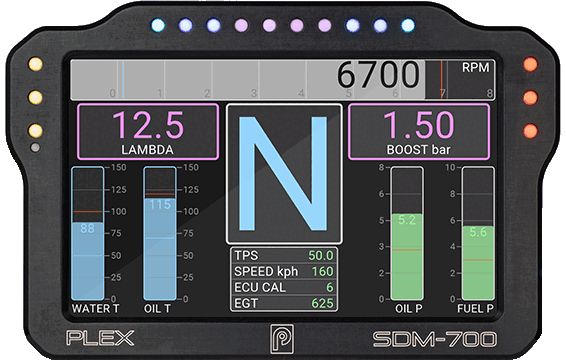

PRELOADED & USER DEFINED ALARMS

22 pre-loaded Smart Alarms which only require that you input their trigger value reduce set-up time by more than 80%. Alarms will then appear superimposed in high contrast over the display page according to set priorities. A history of the last 400 alarms including their date, value and duration will be  stored in a log for later retrieval on the PC SW. Customs alarms with multiple conditions can also be created using any of the available data channels.

PLEX_SDM-700_ALARMS
Souriau Connectors

High quality motorsport 37pin connectors by Souriau (1x on basic version, 2x on pro version), designed for applications where high-performance, small size and lightweight are key factors. Made of rugged IP67 aluminium.

MATH CHANNELS & TABLES

Up to 32 user-defined math channels allow custom parameters to be calculated in real-time. Examples include break bias calculation, long-button hold detection, accumulated condition active time, filtering and more.

Fast Built-in Memory

Up to 2GB super-fast memory chip enables logging throughput of 1,000 data channels at 1,000Hz with equally fast data download speed

View Up to 1024 Data Channels

Depending on your ECU’s capacity and the connected sensors, the SDM-700 can display up to 1024 different channels (pro-version) among which are ECU status and error flags. Always be in the know of what’s going on inside your engine.

CUSTOM CAN BUS

Up to 4 fully-programmable CAN BUS ports lets you configure the display to collect information for almost any CAN Bus ECU or other device on the market. Configurable message transmit lets you control other devices such as PDMs or translate message to a different format as required.

Fast & Intuitive PC Configuration

When setting-up a display for a project, the single most important attribute for tuners/race engineers is the required time. Our revised PLEX Device Manager® SW, provides the fastest and most intuitive configuration experience by reducing set-up time by up to 70%. You can now spend more time in tuning and testing than in customising and configuring the displays for your customers.

PLEX_SDM-700_DEMO_STAND
DISPLAYS COMPARISON TABLE
Design & PriceuSDM-200SDM-330SDM-550SDM-700
Price ex. VAT€559 - €799€1099 - €1.539€1.749€2.499
Dimensions in mm (w/h/d)86.5/63/16125/83.5/14-32145/95/16200/129/27-47
Weight130g270g315g720g
MaterialCNC Alum.CNC Alum.CNC Alum.CNC Alum.
Weather Sealing / IP RatingIP64IP67IP67IP67
Display
Size2.8''4.3''5''7''
Resolution320x240480x272800x480800x480
Brightness900cd/m21000cd/m2900cd/m21000cd/m2
TypeColour IPS TFTColour IPS TFTColour IPS TFTColour TFT
Refresh Rate50Hz50Hz50Hz50Hz
RBG LED Lights3 (conf.)12 (conf.)16 (conf.)16 (conf.)
Anti-reflective-yesyesyes
Connectivity
ConnectorJWPF39pin / flat mount26 pin / sealed37 pin / sealed
Multi-purpose Inputs2x AN/DI/FR8x AN/DI/FR8x AN/DI/FR8x AN/DI/FR
Switch Inputs2 (shared)8x2x4x
Thermocouple Inputs---2
Aux Outputs1 (shared)2 LS2 LS2HS & 2LS
Wiring Loomyesoptionaloptionaloptional
Control Interface /Joystickmembrane keypadoptionaloptionaloptional
Communications
CAN BUS2222
RS232tbd (shared)111
LIN BUStbd (shared)111
Data TransferUSBUSB/Wi-FiUSB/Wi-FIUSB
Internal Sensors
Accelerometer6-axis (DGL version)external (optional)3-axis3-axis
IMU100Hz (DLG version)100Hz (ext./optional)100Hz100Hz
GPS10Hz GNSS (DLG version)25Hz GNSS (ext./optional)25Hz GNSS50Hz
Light Sensoryesyesyesyes
Real-time Clockyesyesyesyes
Device TEMP Sensoryesyesyesyes
User Interface
# of Pagesup to 24up to 32up to 48up to 48
# of Display Parametersup to 128from 256up to 512up to 512
Custom Pagesyesyesyesyes
Custom Page Designyesyesyesyes
Colour Themesyesyesyesyes
Datalogging
MemoryBuilt-in Flash (DL/DLG versions)USB (optional)USB1GB
Logging Rate / Channel100Hz / variable100Hz / variable100Hz / variable500Hz / variable
# Logged Channels64 - 128256512512
Engine Logyesyesyesyes
Alarms Logyesyesyesyes
Calculations
Lap Timingyes (DLG version)yes (optional)yesyes
Acceleration Performanceyes (DLG version)yes (optional)yesyes
Engine Power & Torqueyes (DLG version)yes (optional)yesyes
Math Channelsup to 8from 16from 16from 16
Custom Flagsyesyesyesyes
Trip Meter (dist./time/avg. speed)yesyesyesyes
PRODUCT VERSIONS
  • SDM-700 Basic
TECHNICAL SPEC
  • Operating Voltage: 10-18V
  • Operating Temp: -10C to 50C
  • Sealing: IP67
  • Dimensions: w 200mm x h 129.5mm x d 27/47mm
WHAT’S IN THE BOX?
  • Display
  • Souriau 37pin Connector
  • Connector Pins
  • GPS Antenna
  • USB Cable

PLEX SDM-700®

FIND A RESELLERBUY NOWREQUEST A TRADE QUOTE

Availability: on back-order | Price (excl. VAT): €2.499
New production batch will come with improvements. Read More!
