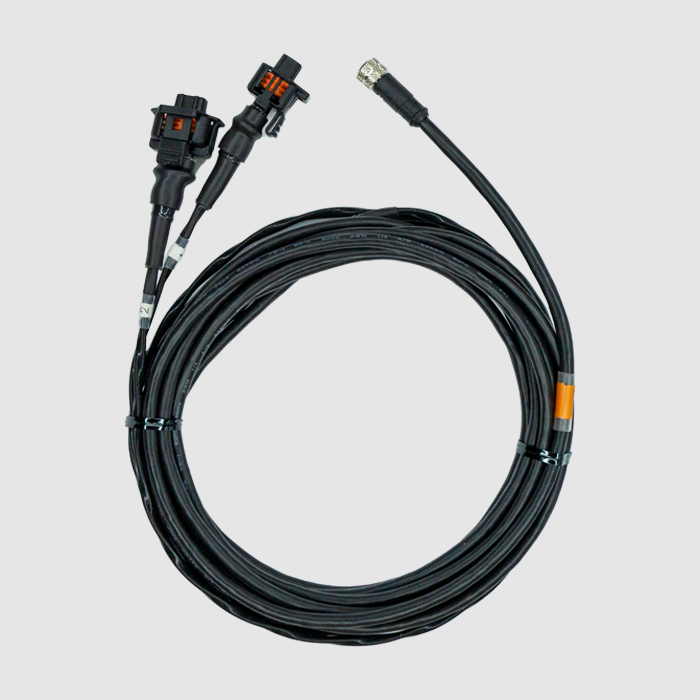

KNOCK SENSORS CABLE (V3)

High-quality, Heat-resistance Dual Knock Cable.

Our own 4 meter high-quality dual knock sensor cable for the PLEX Knock Monitor V3.

SKU: plex-km-v3-kcs

Availability: In stock

Availability: In stock

Request a trade quote
Available to ship with DHL Express in 1-3 days
GUARANTEED SAFE CHECKOUT
  • visa
  • mastercard
  • amex
  • paypal
  • google pay
  • apple pay
  • wire transfer

DETAILED SPEC

KNOCK_CABLE_V3_CABLE_DESIGN

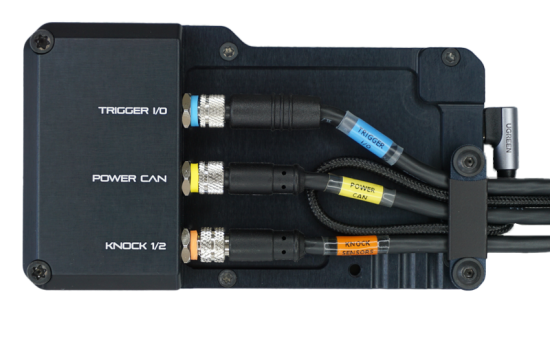

KNOCK_CABLE_V3_CABLES_INSTALLATION_1

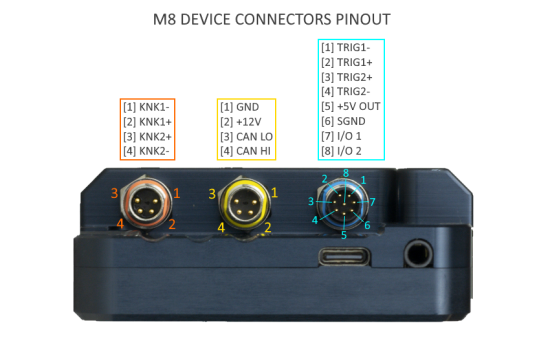

KNOCK_CABLE_V3_INSTALLATION_M8_DEVICE_CONNECTOR_PINOUT
Installation Notes
The knock sensor(s) should be connected directly using the supplied cable for optimal performance.
Alternatively, the knock inputs can be connected to OEM sensors in parallel with the ECU. When using this setup, ensure the following:

  • The Knock Monitor is powered by the vehicle’s 12V system, or if powered via USB, connect a ground to the engine for proper operation.
Follow the Knock Sensor Installation Tips to maintain high-quality vibration signal integrity.
In many cases, it is also possible to utilize the existing knock sensor signals already connected to the ECU.
