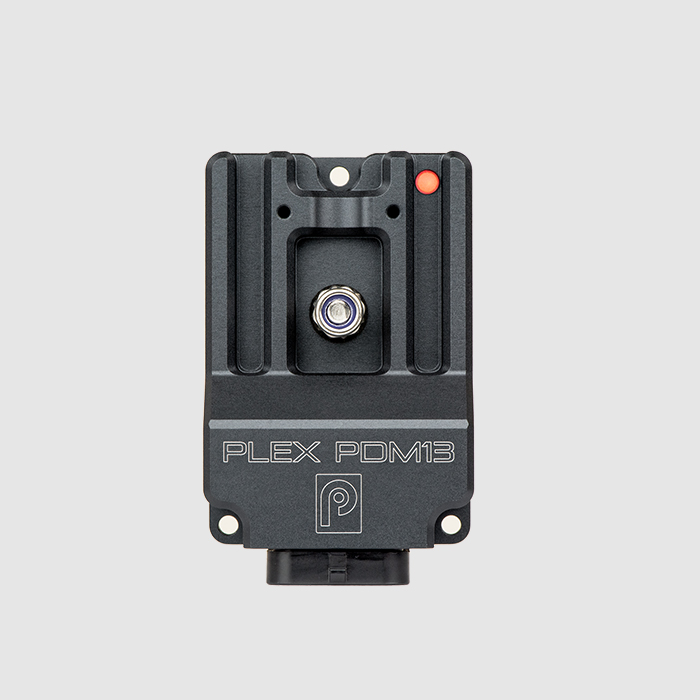

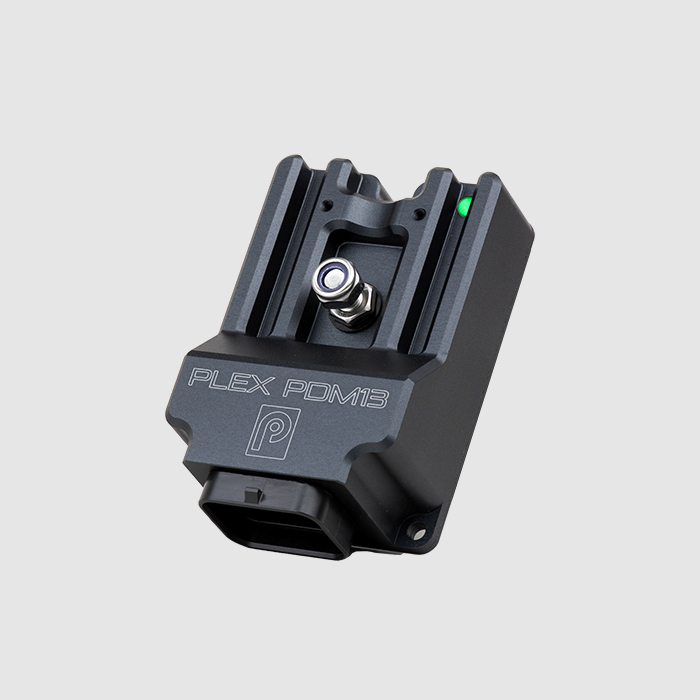

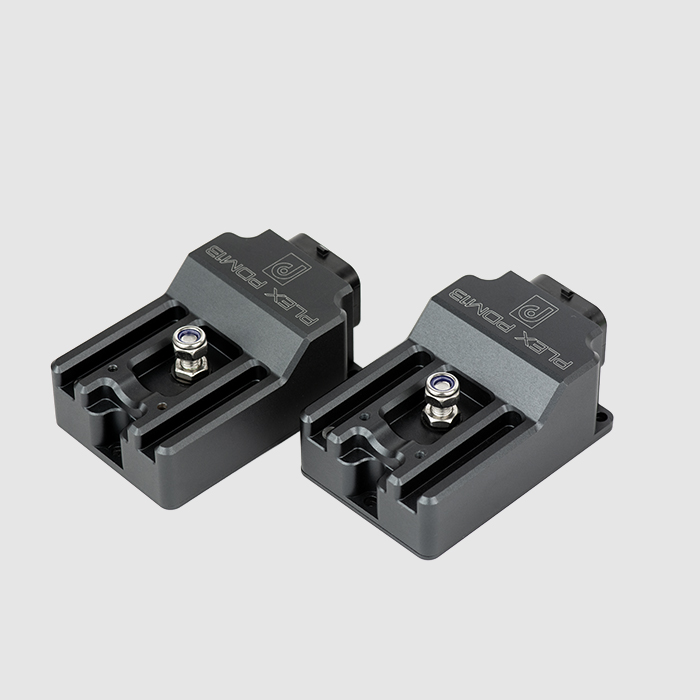

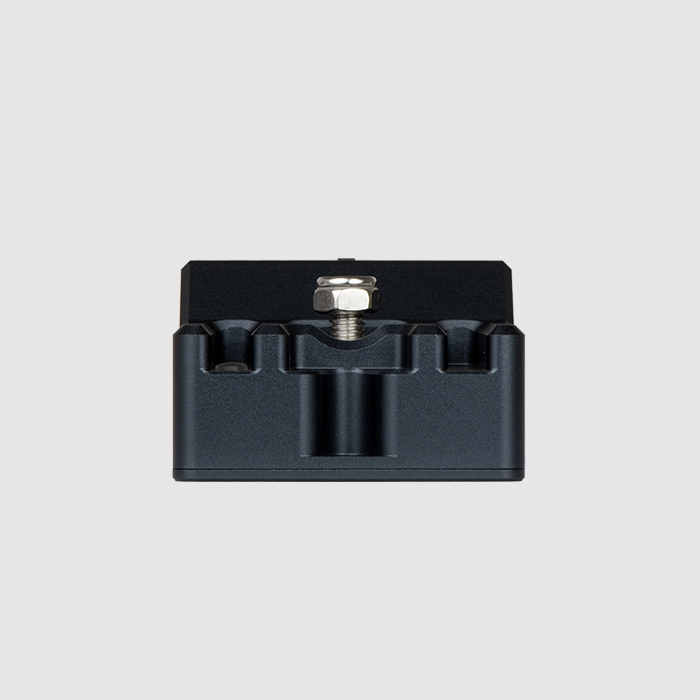

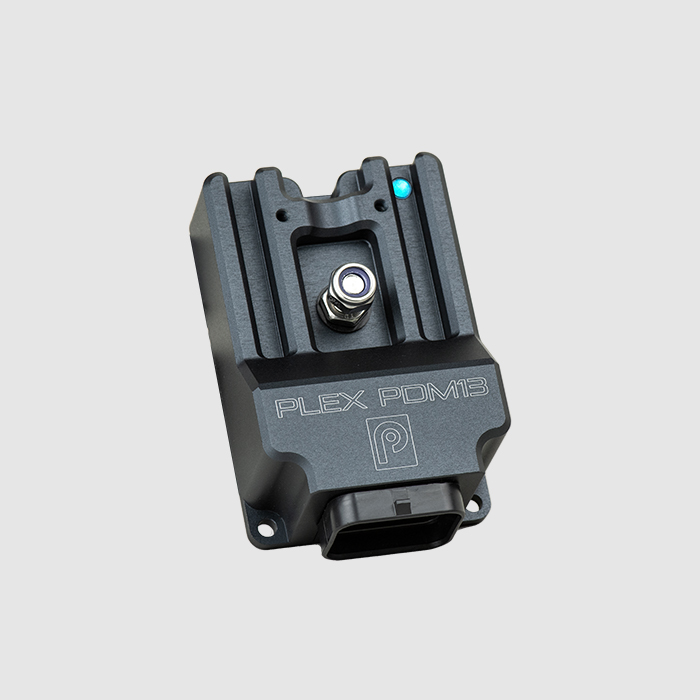

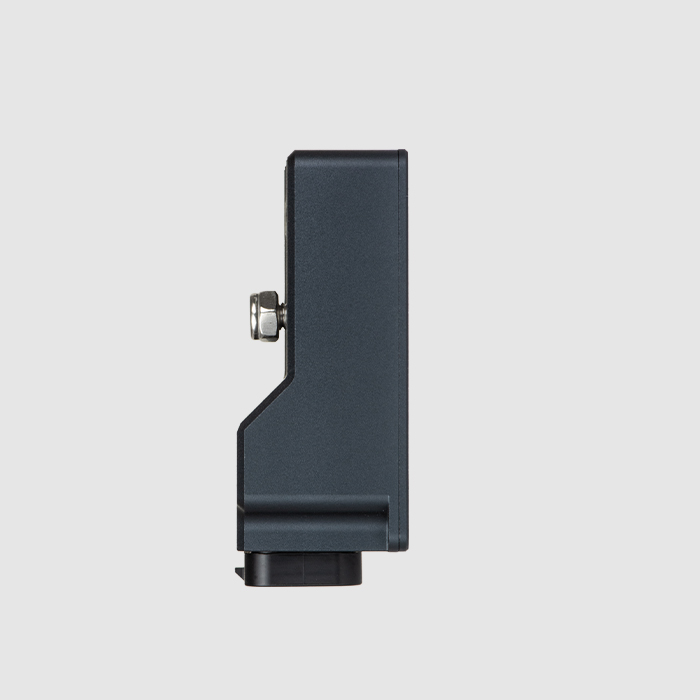

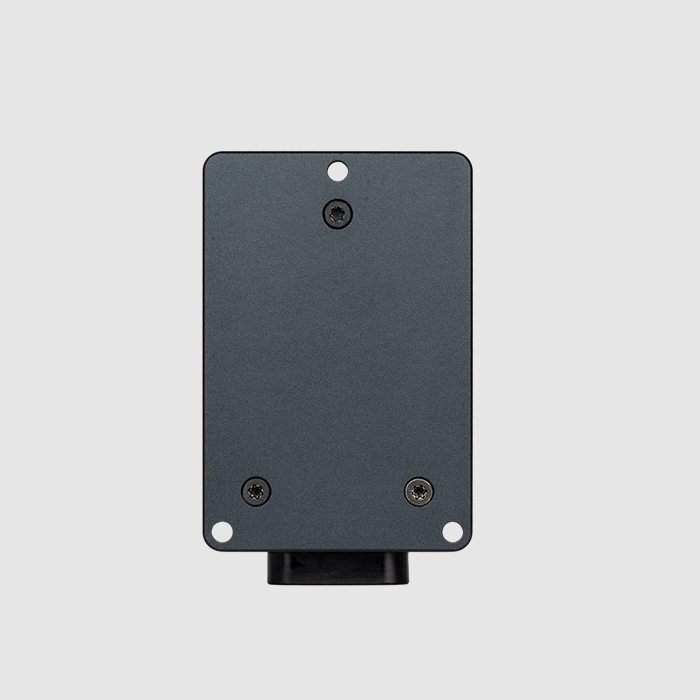

PLEX PDM-13<sup>®</sup>
PLEX PDM-13<sup>®</sup> - Image 2
PLEX PDM-13<sup>®</sup> - Image 3
PLEX PDM-13<sup>®</sup> - Image 4
PLEX PDM-13<sup>®</sup> - Image 5
PLEX PDM-13<sup>®</sup> - Image 6
PLEX PDM-13<sup>®</sup> - Image 7
PLEX PDM-13<sup>®</sup> - Image 8

PLEX PDM-13®

Compact & Versatile Power Distribution Module

A compact, intelligent 13-channel power distribution module delivering precise, configurable control, designed to simplify wiring, reduce weight, and elevate system reliability across modern vehicle platforms.

SKU: plex-exp-boost-1

Availability: In stock

Availability: In stock

Request a trade quote
Available to ship with DHL Express in 1-3 days
GUARANTEED SAFE CHECKOUT
  • visa
  • mastercard
  • amex
  • paypal
  • google pay
  • apple pay
  • wire transfer
Total Control

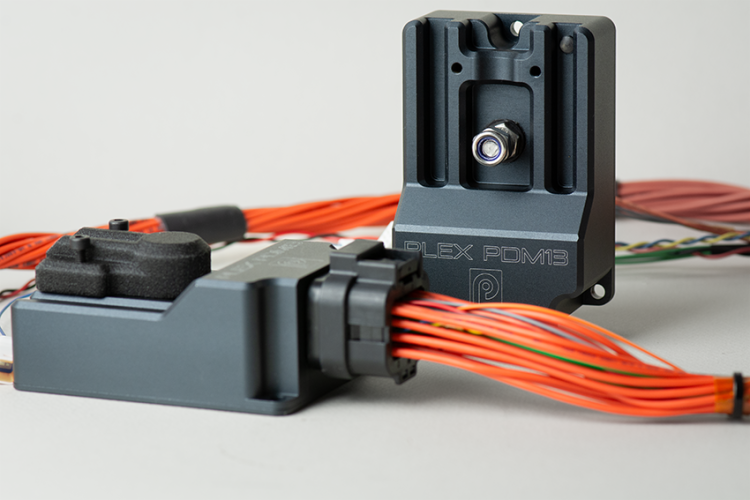

PLEX PDM-13®

Compact. Configurable. Pro.

The PLEX PDM-13 is a 13-channel power distribution module built to replace relays, fuses, and circuit breakers with precise, solid-state control — simplifying your wiring architecture and giving you full command over every output in the system.

With 100A total continuous current capacity, per-output protection strategies, configurable fuse and inrush behaviour, and onboard logic processing, the PDM-13 handles everything from a single motorcycle build to a complex distributed installation. Configuration is handled through PLEX Device Manager — the same intuitive, fast software platform used across the entire PLEX range.

215g. IP67. CNC-machined aluminium. Built to go wherever the application takes it.

KEY FEATURES

CONFIGURABLE CAN BUS & I/Os

Custom CAN Bus configuration with CAN-FD support (250 kbit–5 Mbit) and flexible analog, digital, and frequency inputs tailored to your system architecture.

SOLID STATE POWER DISTRIBUTION

Replaces relays, fuses, and circuit breakers with intelligent electronic control — improving reliability, response time, and system robustness while eliminating mechanical failure points.

13 CONFIGURABLE HS OUTPUTS

Each output carries individually configurable current limits, fuse parameters, warning thresholds, and reset strategies. Four outputs rated at 7A, eight at 15A with output grouping up to 60A continuous, and one at 45A.

INRUSH CURRENT MANAGEMENT

Per-output configurable inrush current and timing to safely handle high-load devices at startup without nuisance trips.

PWM & SOFT START

PWM capability on three outputs with configurable frequency up to 200 Hz, plus soft-start functionality for smooth, controlled power delivery to motors and actuators.

FUNCTION-READY BUILT-IN MODULES

Pre-engineered modules for common vehicle functions — wipers, flashers, and more — reduce configuration time without limiting control over behaviour.

ONBOARD CALCULATION ENGINE

Go beyond simple switching with built-in math channels, 2D lookup tables, user flags, bitfields, and counters. Process data and execute logic directly on the device, reducing reliance on external controllers

SCALABLE BY DESIGN

Optimised for both single-unit and distributed multi-device installations, minimising harness complexity and weight across any application.

BUILT FOR HARSH ENVIRONMENTS

CNC-machined aluminium enclosure with IP67 sealing, operating range −40°C to +85°C (int. device temp up to 125°C), and a 26-pin AMP SuperSeal connector. Engineered to withstand whatever the installation demands.
High Density. Controlled Heat. Proven Reliability.

SOLID-STATE POWER CONTROL IN A RUGGED ENCLOSURE

The PLEX PDM-13 combines a rugged, CNC-machined aluminum enclosure with IP67 protection for reliable operation in harsh conditions. Its compact form factor simplifies installation, while its solid-state design enhances system reliability. Advanced thermal engineering maintains consistent performance under load, and vibration-tolerant construction ensures stable operation even in the most demanding environments.

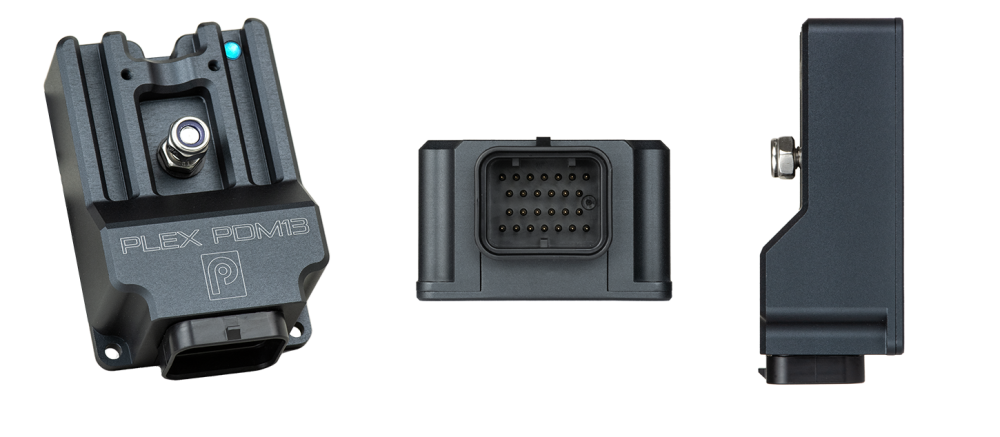

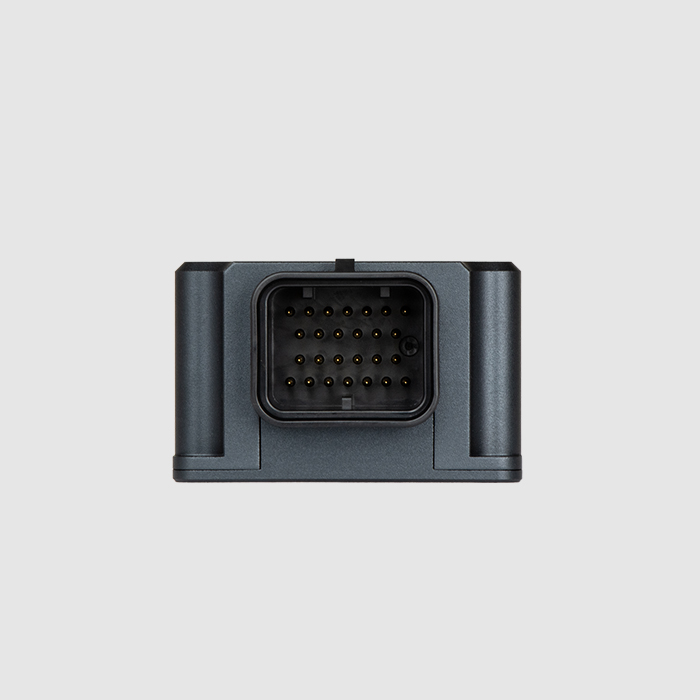

Sealed Connector

26pin weather-sealed AMP Superseal connector.

RGB LED Light

Ultra-bright LED for device status / diagnostics

Ultra-compact IP67 Enclosure

Small, rugged aluminum enclosure for easy installation / mounting on the engine.

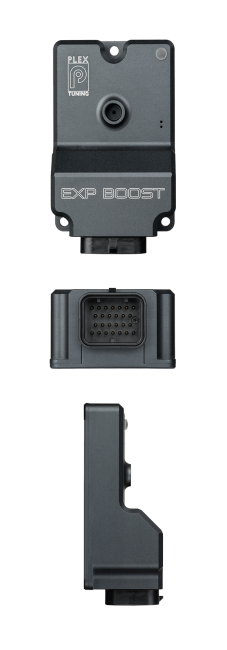

RUGGED AND COMPACT
WEATHER SEALED HARDWARE.

Built for durability and seamless integration, the PLEX EXP-Boost features a standalone, weather-sealed unit designed for optimal placement near the engine. This ensures precise boost control, efficient power distribution, and reduced wiring complexity, making installation cleaner and more robust in any environment.

RGB LED Lights

Four configurable RGB LED lights can be programmed for device status and custom knock warnings/alerts.

2.8`` IPS TFT Display & Custom UI

View knock events clealy in real time via the new wide-angle IPS display. Configure display pages according to your preferences.

USB Datalogging

32Mb micro-SD card for seamless and convenient datalogging.

Industrial Quality Membrane Keypad

Highly-ergonomic membrane keypad let you control the device easily.

Mounting Screw

1/4″ -20 threaded hole for effortless mounting with custom holders
or easily available suction cap holders.

High-quality Cables/Connectors

Industrial quality M8 connectors with new high-quality cables for the Knock Sensors, Trigger Input, IOs, Power and CAN Bus.

100Mbit Ethernet

Ultra-fast, long-distance streaming of device data via Ethernet. Ideal for engine Dynos.

Cable Holder Bracket

Sturdy aluminum cable holder bracket prevents stress or damage to the device connectors.

USB Port

Convenient USB type C port for device configuration and short-range real-time data streaming.

Audio Output

3.6mm audio jack. Plug-in your headset and list to knock in raw or filtered format.
READY TO USE. JUST CONFIGURE.

BUILT-IN
FUNCTIONAL MODULES

Pre-programmed logic blocks for common vehicle functions — wipers, flashers, and more — ready to deploy out of the box. Assign inputs, map outputs, and fine-tune behaviour through a structured interface, without building the logic from scratch.

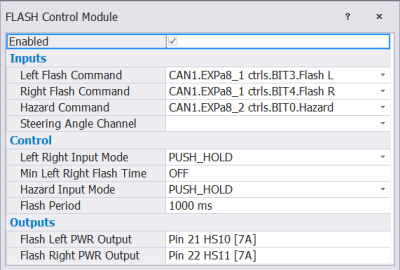

FLASH MODULE

Configure left, right, and hazard flash functions with full control over activation mode, flash period, and hold times — all without writing a single line of logic.

WIPER MODULE

Set up wiper and wash motor control with up to three speed settings and precise stop position control. From single-speed street builds to multi-mode race setups, the behaviour is defined entirely through configuration.

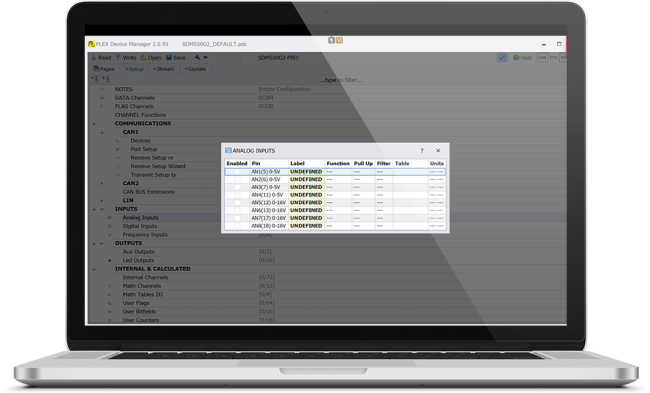

PLEX DEVICE MANAGER 2.0

YOUR CONTROLLER. YOUR WAY.

Advanced Configuration at Your Fingertips.

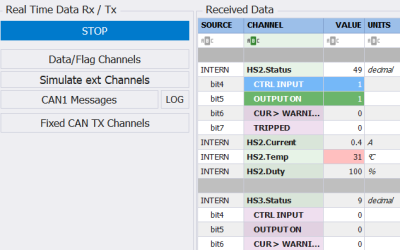

REAL-TIME PWR OUTPUT DATA

Monitor every power output in real time with detailed visibility into status, current draw, temperature, and duty cycle. Active channels, overload conditions, and fault states are instantly readable through colour-coded indicators and clearly structured data — giving you faster diagnostics, confident decision-making, and complete oversight of your electrical system at any moment.

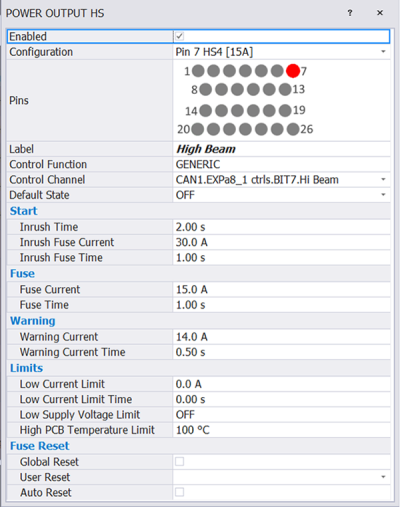

PWR OUTPUT SETUP

Configure each power output with precision through a visual pin assignment interface and direct channel mapping. Define protection strategies with full control over inrush behaviour, electronic fuse parameters, warning thresholds, and safety limits — covering everything from low current detection to PCB temperature protection. Fast to set up, thorough enough for the most demanding applications.

BUILT-IN MODULES

Deploy common vehicle functions quickly using a library of pre-engineered modules — covering lighting, wipers, and more. Each module provides a structured configuration interface for input sources, control modes, timing parameters, and output assignments, eliminating the need to build standard logic from scratch. The result is faster integration without sacrificing control over system behaviour.

EASY TO NAVIGATE
SETUP TREE INTERFACE

A hierarchical tree-list interface offers an intuitive and organized way to access all device configuration options. This logical flow simplifies complex setups, allowing users to navigate effortlessly through various configuration layers.

COMMON USER INTERFACE
FOR ALL PLEX DEVICES

The PDMv2 provides a unified interface across all PLEX devices, from dashboards to tuning tools. This consistency ensures easy switching between devices and streamlines configuration with a shared layout and features.

TRULY FAST CONFIGURATION

Speed up the configuration process with easy filtering of selection lists, keyboard shortcuts, and copy-paste functionality. These tools help streamline & accelerate setup, minimizing time spent on repetitive tasks.

REAL-TIME CAN MSG STREAMING

Transform your device into a powerful CAN bus diagnostic tool with real-time streaming of incoming raw CAN messages. View all incoming data instantly, and transmit user-defined CAN messages on demand for advanced troubleshooting and system testing.

BUILT-IN TEMPLATES

The software comes preloaded with a comprehensive library of CAN protocol templates for seamless connection to most aftermarket ECUs. It also includes sensor templates for common engine sensors, allowing for quick and easy setup without manual configuration.

DETAILED SPEC

PDM-13_TECHNICAL_DRAWING_DIMENSIONS
Physical
Dimensions (mm) w 54 x l 80 x h 34
Weight 215g
Connector AMP Superseal-26
Sealing/Ingress Protection IP67
Mounting 3x M4 holes
Material CNC machined aluminum
Electrical Data / Operating Conditions
Supply Voltage Range 8-18V DC
Power Input M6 +12V supply volt
Temperature Range -40 to +85 degC
Communications
CAN Bus 1 (250 kbit – 5 Mbit with CAN-FD support) for configuration & FW updates
Inputs/Outputs

INPUTS

Analog/Digital/Frequency 0-5V (with selectable 3K3 pull-up) x2
Analog/Digital/Frequency 0-16V x1
Analog/Digital 0-16V x1

OUTPUTS

7A High-Side x4

  • 14A inrush per output)
15A High-Side x6

  • Output grouping supported
  • 60A max combined cont. current
  • 30A inrush per output
  • 120A max combined inrush
15A High-Side with PWM x2

  • Configurable frequences: 200/100/50/40/25/20/10 Hz
  • Soft-start capability
  • 30A inrush per output
45A High-Side with PMW x1

  • Configurable frequencies: 200/100/50/40/25/20/10 Hz
  • Soft-start capability
  • 90A inrush
Internal Sensors
Temperature monitoring points multiple
Voltage monitoring +12V & +5V
Data & Processing
Data Channels up to 128
Flag Channels up to 128
Math Channels x4
2D Math Channels x2
User Flags x32
User Bitfields x12
User Counters x4

DEVICE COMPATIBILITY

ECUs - Aftermarket
Adaptronic
AEM
  • Infinity
  • Series 2
Bosch Motorsport
  • MS3
  • MS40
Carrot
DTA
  • S Series
  • T Series
ECUMASTER
  • EMU Black
  • Classic
  • Pro
EFI
  • EFR18
  • Euro1
  • Euro4
  • Euro6
  • Euro8
Electromotive TEC
Emerald
  • K3
  • K6
Emtron
E-Race Black
GEMS
Haltech
Hondata
  • Kpro
  • S300
KMS
  • MD35
Life Racing
LINK
  • G3
  • G4
  • G4X
MAXX
MARELLI
Mectronic
  • MKE1
  • MKE4
  • MKE6
  • MKE7
Megasquirt
Microtech
  • v2.0
MMe
  • ECU481
MOTEC
  • M400
  • M600
  • M800
  • M1 Series
Pectel
  • EQ10
  • SQ6
Specialist
Components
SYVECS
  • S6
  • S7
  • S8
Triject
ECUs - OEM
BMW M2/M4
MItsubishi Evo X
Toyota GT86
ECUs - Generic OBDII/UDS
OBD – CAN ISO15765
OBD – MODE 22 MANUFACTURER SPECIFIC PIDS
OBD – UDS
J1939
NMEA2000
Auxiliary Devices
ABS Bosch Motorsport M4/M5
DCU Motec MDC/MDC2
KEYPAD Blink Marine
KEYPAD Tremondi
LAMBDA AEM
LAMBDA Ecumaster
LAMDA Haltech
LAMBDA Link
LAMBDA Motec
SENSOR AEM Thermocouple Amplifier
SENSOR KMS Thermocouple Amplifier
SENSOR KMS Flex Fuel
SENSOR KMS Speed Sensor
SENSOR Motec E888
SENSOR Syvecs Thermocouple Amplifier
SENSOR TEXENSE IRN4C/IRN8C/THN4X
SENSOR AIM TPMS
SENSOR IZZE TPMS
TCU XAP ESHIFT2

QUESTIONS? ANSWERS.

Documentation
Datasheet download
Pin-out Diagram pending
Mounting Diagram pending
User Manual access
Software
PLEX Device Manager 2.0 download
What's In the Box?
1. PDM-13 Module x1
2. 26-pin Connector (TE 3-1437290-7) x1
3. Wire Pins 16-18AWG (TE 3-1447221-3) x18
4. Signal Pins 22AWG (TE 3-1447221-5) x12
5. Dummy Plugs (TE 4-1437284-5) x12
6. 3D printed +12V Protection Cap x1
7. M3 Mounting Bolts for Cap x2
8. M6 Hex Nut x1
9. M6 Ring Terminal (6-16 mm²) x1
10. M6 Ring Terminal (6-25 mm²) x1
