BLINK_MARINE_4BUTTON_CAN_KEYPAD

PLEX SDM-330

1.099,00€ – 1.838,00€ Excl. VAT

4.3” Pro-level Race Display with full configuration. Suitable for any type of vehicle, both for dashboard & steering wheel installation.

Back-in-Stock!

Clear
SKU: plexsdm330-1 Categories: ,

Description

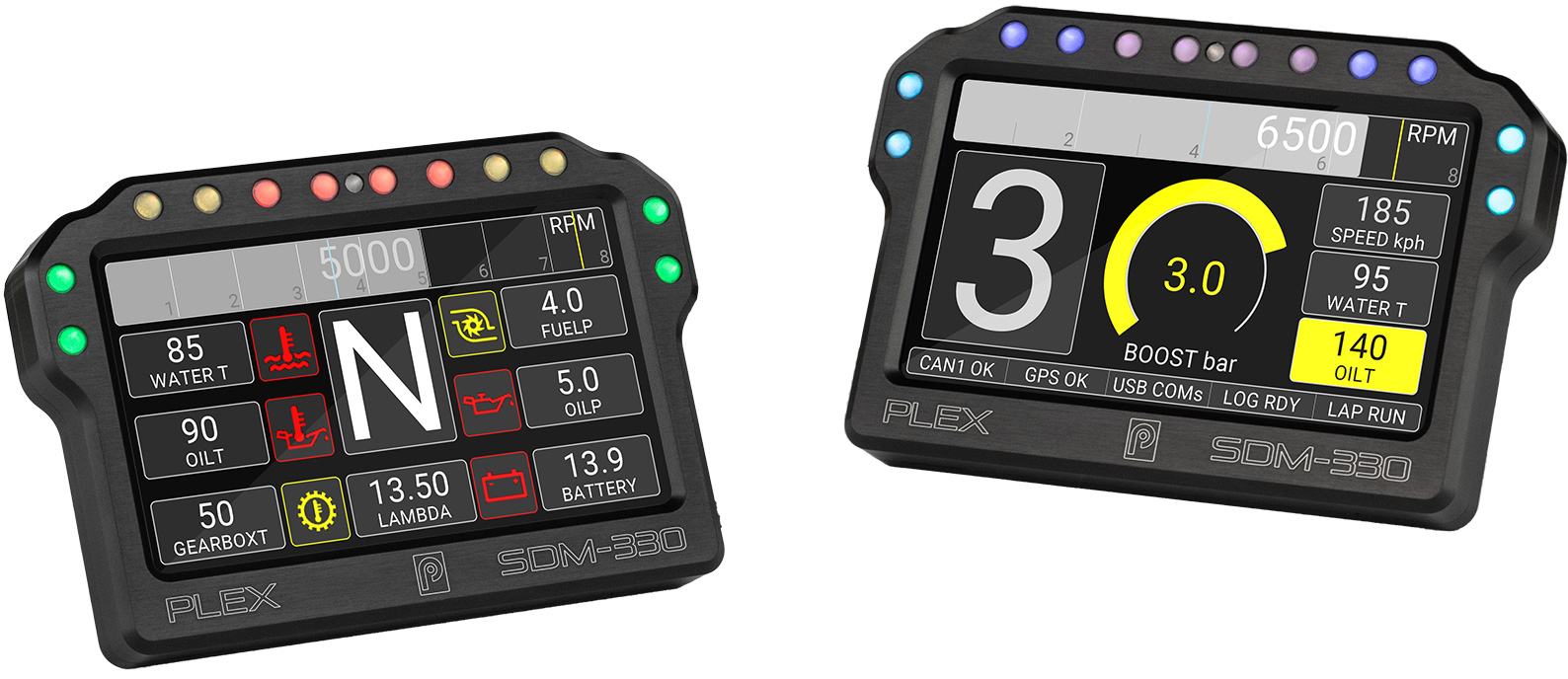

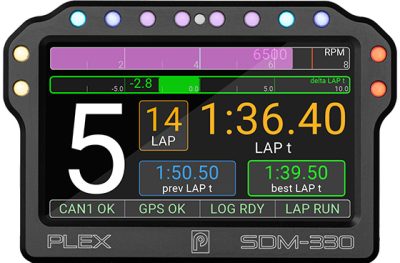

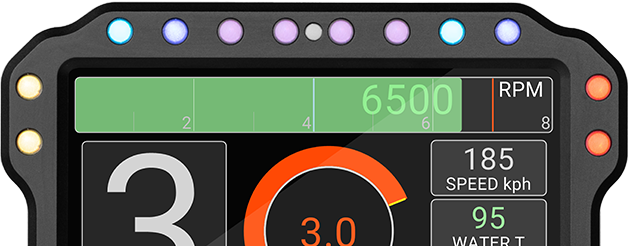

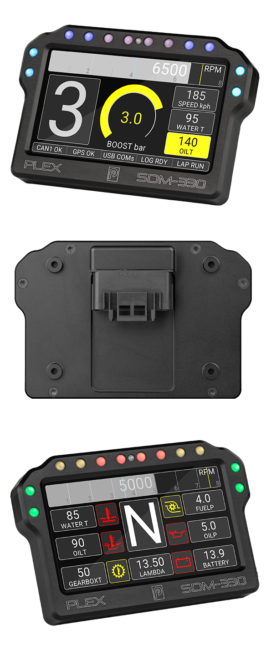

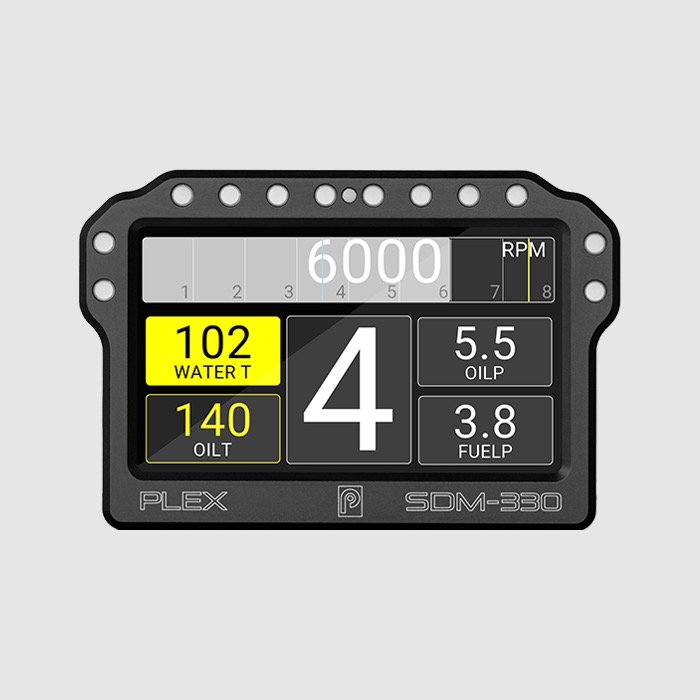

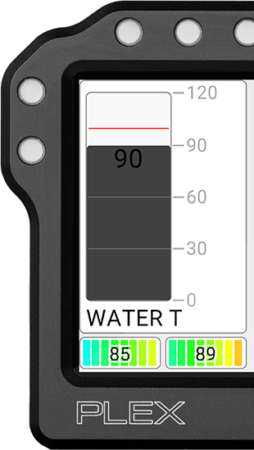

The New PLEX SDM-330® is an ultra-compact, 4.3’’ high-performance display & logger designed for all types of vehicles, suitable both for dashboard or steering wheel installation. Housed in a light-weight CNC aluminum enclosure with IP67 protection, the SDM-330 features a 1k cd bright IPS TFT display and comes with our renowned proprietary clean UI that places emphasis on effectiveness vs impression. The SDM-330 replaces the now discontinued SDM-300 & SDM-500 and is a fully re-designed and improved successor that is runs on a powerful multi-core processor.

What’s in the Box

  • Display
  • Automotive Connector
  • Connector Pins
  • USB cable
  • External GNSS/IMU module (option — not available yet)

Product Versions

  • SDM-330-D | Display only
  • SDM-330-DL | Display plus USB logging
  • SDM-330-DLG | Display, USB logging and 25Hz ext. GNSS module (not available yet)

Add-Ons

  1. PowerTrack
    Rotary encoder CAN BUS keypad
  2. ProPad
    4key CAN BUS keypad

Additional information

WeightN/A

Key Features

  • 4.3” Ultra-vivid and high-contrast IPS Display
  • Broadband Anti-reflective Glass
  • IP67 Sealing

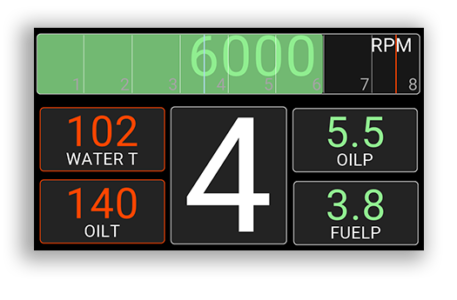

  • QuickGlance™ UI
  • Custom Page Design
  • Automatic display page changing
  • Preloaded Smart Alarms & User Defined Alarms
  • Fully Configurable CAN BUS port and I/Os
  • External 25Hz GNSS (option / not available yet)
  • Display of up to 256 data channels (option for more)
  • Up to 32 different display pages
  • Unlimited USB logging (option)
  • Fast & easy configuration
  • 10x multi-purpose inputs
  • 2x CAN BUS ports, 1x RS232 port and 1x LIN BUS port

Compatibility

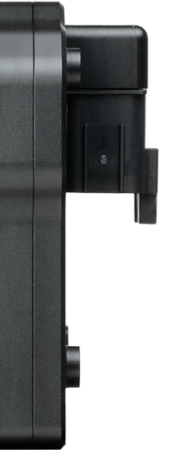

Compatible with most after Market ECUs and with OBDII (ISO15765). Due to size, form factor and connector design, it is suitable for both dashboard and steering wheel installation on all types of vehicles: motorcycles, automotive, off-road, marine and other.

PC Software

Configuration requires the PLEX Device Manager V2 software.

Key Features
– Quick & easy device configuration
– Firmware upgrades/updates via USB
– Engine log review
– Custom CAN Bus configuration
– Math Channel
– Custom page design

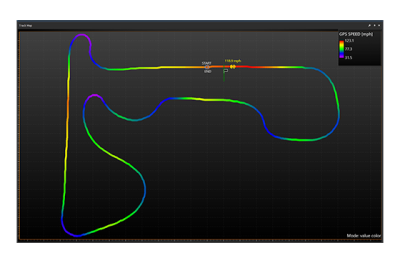

-DL and -DLG versions compatible also with our PDA-WIN and PDA-WIN Pro Data Analysis & Visualisation software.

Documentation

  • The instructions manual is currently under development and available online on our support area here
  • Download the product datasheet here.
