PLEX SDM-550®

5” Pro-level Dash Display & Logger
powerful | fully configurable | multi-functional

The new SDM-550® is a powerful All-in-One display & logger for demanding and quality driven customers. The built-in 25Hz GNSS module with dead reckoning ensures accurate lap timing even in low signal conditions. Configuration is very fast & intuitive and USB logging diminishes file downloading time. The SDM-550® comes in a rugged IP67 aluminium enclosure & features an anti-reflective IPS TFT display that is viewable in all conditions. Similar to all other PLEX displays, the SDM-550® is fully configurable and provides our unbeatable clean graphics with effective viewing ergonomics.

Availability: back in stock! | Price ex.VAT: €1749

Key Features

5'' Ultra-vidid IPS Display

Very bright & high-contrast (800 cd/m2) 800 x 480 IPS TFT colour display with high-quality broadband ARC antireflective glass for optimum performance in all light conditions

25Hz Concurrent GNSS Module

Built-in 20Hz GNSS Module with ultra-fast start-up time that works with all satelites (GPS, Glonass, Galileo, Beidou) for accurate lap-timing with section break-down & raw data logging

Smart Alarms / Warnings

Easy to set-up pre-loaded smart alarms with history of the last 100 kept in memory with time, duration and value

Compact & Rugged

IP67 sealing, rugged CNC aluminum enclosure and very compact dimensions (size & depth) to fit on every type of dashboard

Quick-Glance™ UI

Proprietary UI design ensures optimal viewability and reduced driver distraction by optimising smart colour coding and contrast for the driver’s peripheral vision.

100Hz Inertial Measurement Unit

Accurate Inertial Measurement Unit (IMU) that combines accelerometer, gyroscope and magnetometer to calculate the vehicles’s specific force & angular rate: pitch, roll and yaw

Up to 512 Data Channels

Display up to 512 data / flag channels from an ECU, OBDII, sensor and internally calculated parameters

Sealed Automotive Connector

10x multi-purpose inputs (digital – analog – frequency) that can be configured for any type sensor, plus two auxiliary outputs

Automatic Page Changing

Hands-free display page changing based on user-defined conditions such as engine status and/or load to help you keep your attention focused

Performance Measurements

Integrated performance meter functionality
that runs constantly in the background calculates vehicle acceleration & deceleration performance

Fast & Easy Wi-Fi Configuration

Quickly configure CAN BUS receive / transmit, design custom pages, set smart alarms or setup multi-use inputs & aux outputs.

Unlimited USB Logging

Unlimited logging memory using USB flash drives for zero file download time
KEY APPLICATION AREAS

AUTOMOTIVE

  • Works with after-market ECUs
  • Works with OBDII ISO15765
  • Custom OBD PIDs
  • Customisable CAN BUS & I/Os
  • Programmable LED Lights

MOTORCYCLE

  • Compact & Rugged
  • IP67 Sealing
  • Anti-reflective IPS display
  • Integrated IMU
  • Integrated GPS

MARINE

  • IP67 Sealing
  • Anti-reflective IPS display
  • Rugged Enclosure
  • Integrated IMU
  • Integrated GPS

OFF-ROAD

  • IP67 Sealing
  • Anti-reflective IPS display
  • Rugged Enclosure
  • Integrated IMU
  • Integrated GPS

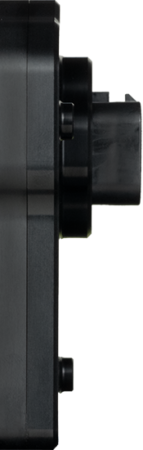

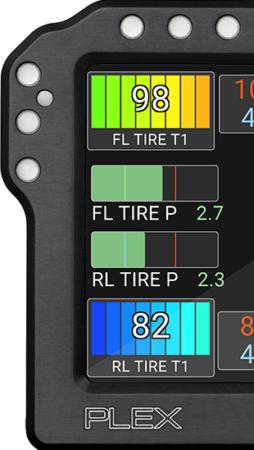

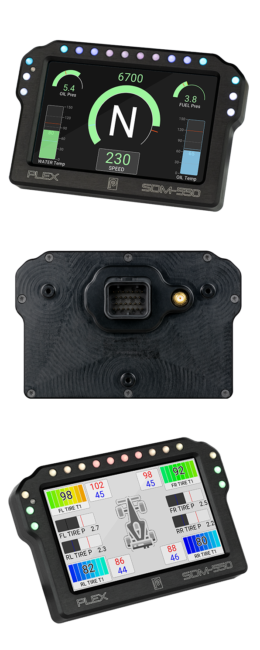

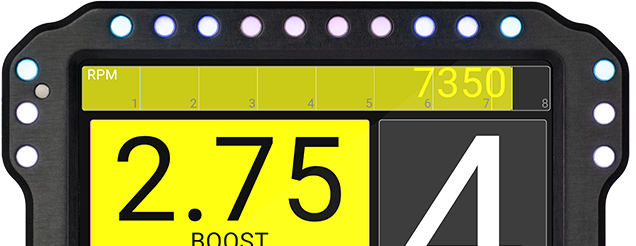

Hardware Details
PLEX SDM-550 Display & Logger
PLEX SDM-550 Display & Logger
PLEX SDM-550 Display & Logger
PLEX SDM-550 Display & Logger
PLEX SDM-550 Display & Logger
PLEX SDM-550 Display & Logger
PLEX SDM-550 Display & Logger
PLEX SDM-550 Display & Logger
SDM Displays Comparison Table
Design & PriceuSDM-200SDM-330SDM-550SDM-700-R (2024)
Price ex. VAT€559 - €799€1099 - €1.539€1.749€2.499
Dimensions in mm (w/h/d)86.5/63/16125/83.5/14-32145/95/16200/129/27-47
Weight130g270g315g720g
MaterialCNC Alum.CNC Alum.CNC Alum.CNC Alum.
Weather Sealing / IP RatingIP64IP67IP67IP67
Display
Size2.8''4.3''5''7''
Resolution320x240480x272800x480800x480
Brightness900cd/m21000cd/m2900cd/m21000cd/m2
TypeColour IPS TFTColour IPS TFTColour IPS TFTColour TFT
Refresh Rate50Hz50Hz50Hz50Hz
RBG LED Lights3 (conf.)12 (conf.)16 (conf.)16 (conf.)
Anti-reflective-yesyesyes
Connectivity
ConnectorJWPF39pin / flat mount26 pin / sealed37 pin / sealed
Multi-purpose Inputs2x AN/DI/FR8x AN/DI/FR8x AN/DI/FR8x AN/DI/FR
Switch Inputs2 (shared)8x2x4x
Thermocouple Inputs---2
Aux Outputs1 (shared)2 LS2 LS2HS & 2LS
Wiring Loomyesoptionaloptionaloptional
Control Interface /Joystickmembrane keypadoptionaloptionaloptional
Communications
CAN BUS2222
RS232tbd (shared)111
LIN BUStbd (shared)111
Data TransferUSBUSB/Wi-FiUSB/Wi-FIUSB/Wi-Fi
Internal Sensors
Accelerometer6-axis (DGL version)external (optional)3-axis3-axis
IMU100Hz (DLG version)100Hz (ext./optional)100Hz100Hz
GPS10Hz GNSS (DLG version)25Hz GNSS (ext./optional)25Hz GNSS25Hz GNSS
Light Sensoryesyesyesyes
Real-time Clockyesyesyesyes
Device TEMP Sensoryesyesyesyes
User Interface
# of Pagesup to 24up to 32up to 48up to 48
# of Display Parametersup to 128from 256up to 512up to 512
Custom Pagesyesyesyesyes
Custom Page Designyesyesyesyes
Colour Themesyesyesyesyes
Datalogging
MemoryBuilt-in Flash (DL/DLG versions)USB (optional)USB
Logging Rate / Channel100Hz / variable100Hz / variable100Hz / variable500Hz / variable
# Logged Channels64 - 128256512512
Engine Logyesyesyesyes
Alarms Logyesyesyesyes
Calculations
Lap Timingyes (DLG version)yes (optional)yesyes
Acceleration Performanceyes (DLG version)yes (optional)yesyes
Engine Power & Torqueyes (DLG version)yes (optional)yesyes
Math Channelsup to 8from 16from 16from 16
Custom Flagsyesyesyesyes
Trip Meter (dist./time/avg. speed)yesyesyesyes
